Trinity

The Excellence of Drali Steel

Trinity represents the excellence of Drali steel. This racing bike, made from special oversized steel, is designed to deliver high performance. It stands out for advanced features that optimize comfort and handling, making it the ideal choice for the most demanding cyclists. The top tube is tapered along the vertical axis, a feature that optimizes weight distribution and improves torsional stiffness.

Comfort and Handling

The oversized Drali special steel tubes help reduce unwanted flex, ensuring maximum comfort.
01

Lightness and Quality

The T47 stainless steel bottom bracket shell offers the best solution in terms of mechanical properties and weight.
02

All-Road Spirit

Tire clearance guaranteed up to 34 mm for maximum versatility and safety. Geometry optimized to enhance comfort.
03

Frame

MEASURES

50
51.5
53
54.5
56
57.5
59
60.5

Material

Special oversized steel tubes

FRAME WEIGHT

1720 grams unpainted, size 51.5

AVAILABLE UPON REQUEST

Custom Geometry
Custom Coloring
External cable routing for mechanical groups

technical specifications

Stainless steel case and details
BB: T47 - inox
Brakes: DISC - TA 142x12
Headset: integrata, 1"1/2 - 1"1/2
Cable routing: Integrated for Electronic Groups
Fork: DEDA ALL ROAD CARBON
Tire clearance: Up to 700x32
Seatpost clamp: Seat Clamp

COLORS

Titanium Grey

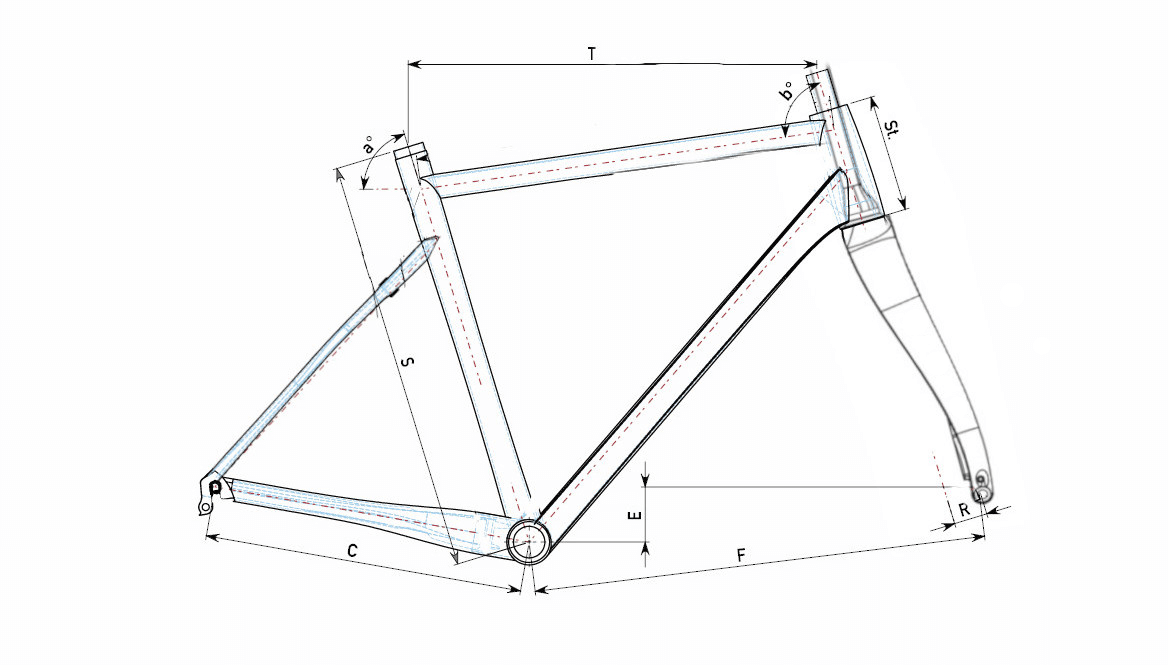

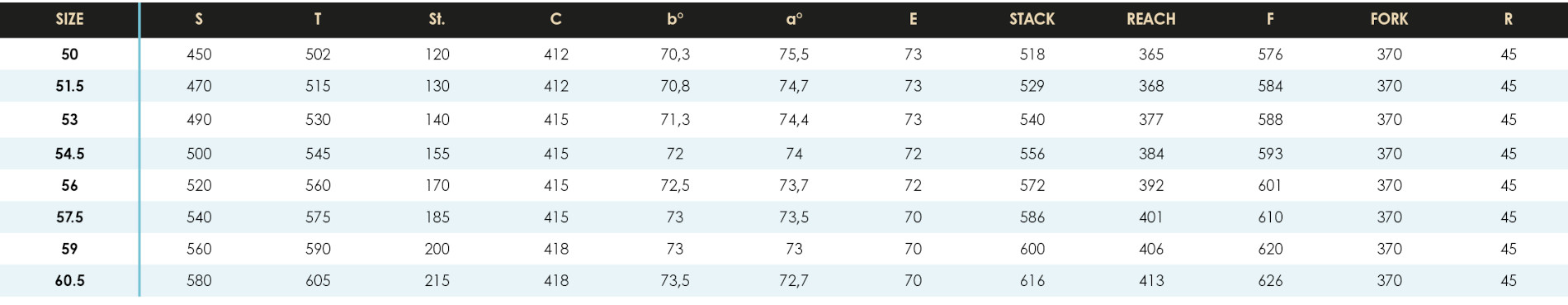

GEOMETRY

Do you want to learn more?

CONTACT US

Trinity
From 3290
